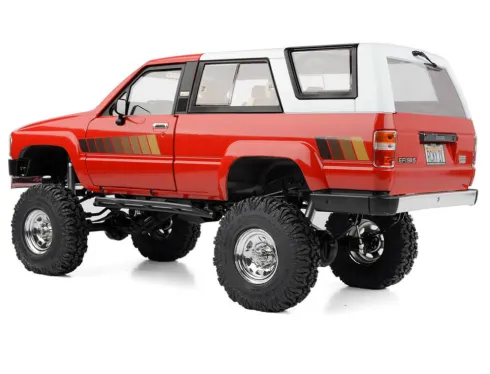

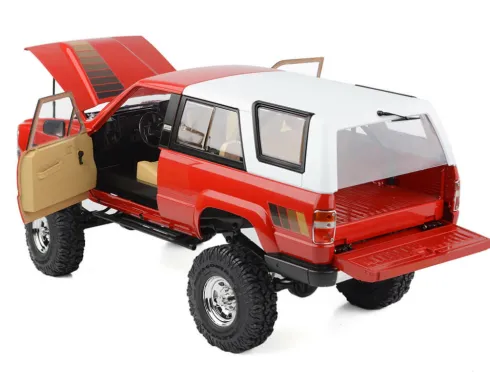

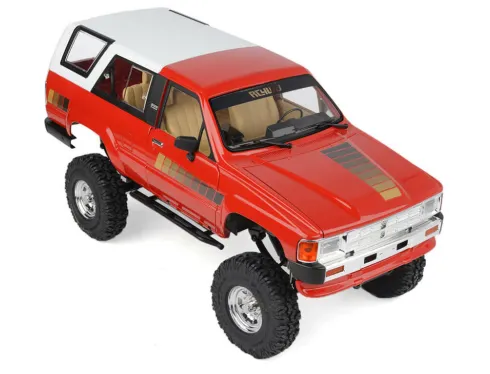

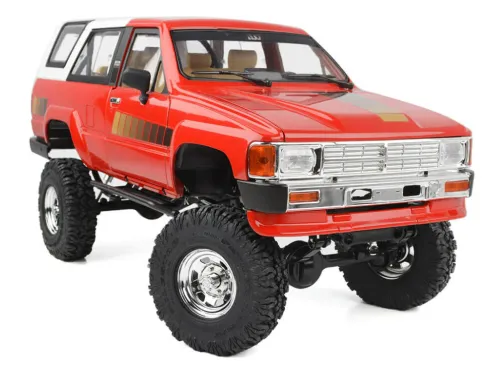

RC4WD Trail Finder 2 RTR With 1985 Toyota 4 Runner Hard Body Set Red

Adventures can happen anywhere. Nothing will give you more fun in the sand, dirt, snow or mud than the Trail Finder 2. Part Scale Truck, Part Adventurer, Your Trail Finder 2 is ready for your mud kicking, trail-loving lifestyle!

The Trail Finder 2 has both detailed styling and aggressive performance. You will find a balance of capability and performance built into every Trail Finder 2. Performance of the Trail Finder 2 is smooth with its R3 single speed transmission, 4wd drivetrain, bulletproof transfer case and quality metal components throughout, The Trail Finder 2 is truly a work of art in both appearance and performance.

Every Trail Finder 2 is compatible with a full range of options and performance parts designed to enhance the Performance and add to the scale look of the true scale 1/10 Off-Road Truck… The Trail Finder 2!

Your Adventure Awaits! Now with new upgrades!

Features

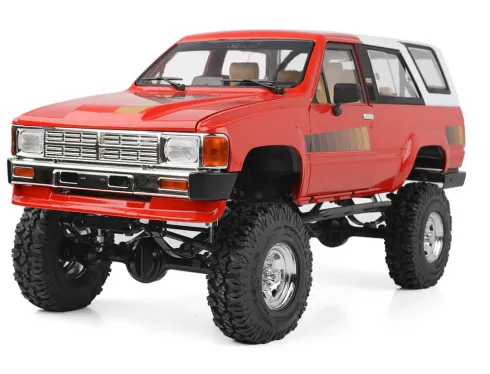

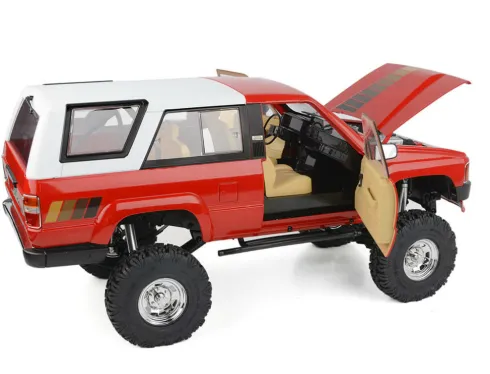

• 1/10 1985 Toyota 4runner Hard Body Complete Set in Red
• Pre-painted White Topper
• Pre-installed Led Light Set

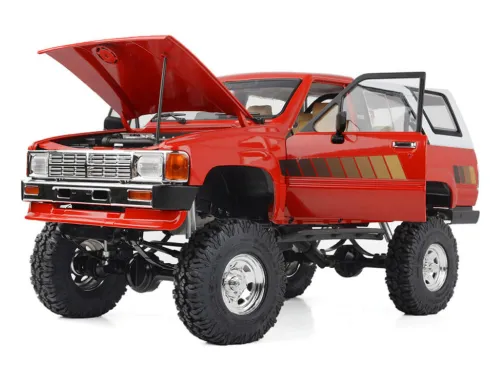

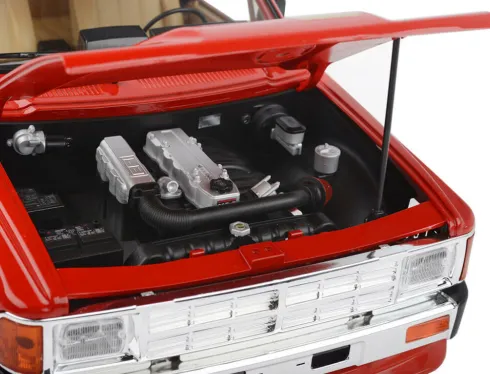

• Fully Detailed Yota 22RE Engine Bay
• Stamped Steel 1.7″” Beadlock SR5 Wheels (Chrome)
• RC4WD Milestar Patagonia M/T 1.7″” Scale Tires
• Yota II Ultimate Scale Cast Axles (XVD)
• RC4WD Ultimate Scale Shocks
• Soft Steel Leaf Springs
• 540 Crawler Brush Motor 45T
• R3 Single Speed Transmission
• Center Mounted Hammer Transfer Case
• Twister High Torque Metal Gear Digital Servo
• Outcry III Waterproof ESC
• 6-Cell 3000mAh NIMH W/ XT60 Plug
• RC4WD Marlin Crawler Side Plastic Sliders
• Front & Rear Inner Fender Set
• XR3 3-Channel 2.4Ghz Transmitter/Receiver Radio
• Universal NIMH Peak Battery Charger
• Uninstalled Plastic Front Winch Bumper

Specifications

Hammer Transfer Case
Ratio:1.47: 1
Gears:Wide .8 Mod Steel Gears
Features:8 Bearings, Cast Casing, Hardened Gears

R3 Single Speed Transmission
Ratios:Pinion/Spur 14/64 = 4.57:1 Internal
Ratio:1.78:1
Gears:Wide Steel .8 Mod, Delrin Spur, Slipper Clutch
Features:Metal Billet Aluminum Casing, Scale Looking, Motor Mount can be Rotated to 10 different Positions, Compatible with other Brand Spurs (Axial, Traxxas, Robinson)

Yota II Ultimate Scale Cast Axles
Ratio:15/40 = 2.67:1
Width at Hex:178.2mm

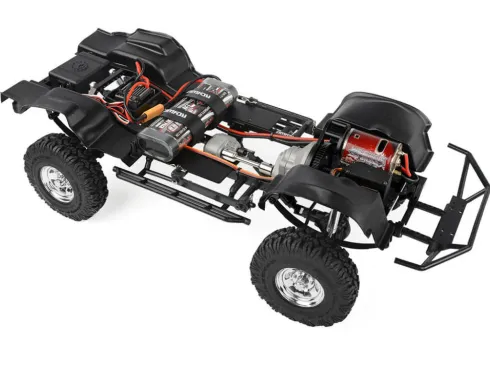

Trail Finder 2 Chassis Features
Features:Billet Aluminum Constriction, Adjustable Shock Hoops

Drive Shafts
RC4WD Plastic Punisher Shaft V2 (102mm-110mm / 4.02″” – 4.33″”) 5mm Hole

Wheels
Type:Stamped Steel 1.7″” Beadlock SR5 Wheels (Chrome)
Hub:12mm Hex
Width:22.0mm (0.87″”)
OD:47.0mm (1.85″”)

Bumpers
Marlin Crawler Front Plastic Tube Bumper
Marlin Crawler Side Plastic Sliders
Authentic Looking Crawler Style Bumper, High Quality Flexible Plastic, Extremely Durable

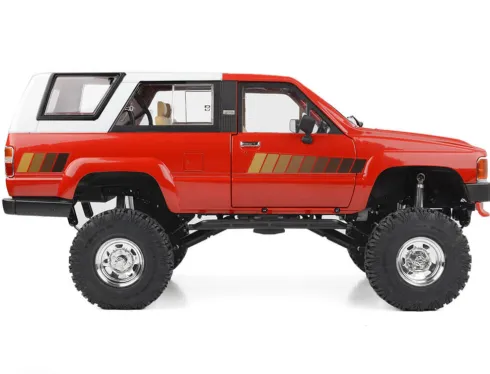

TF2 Truck Dimensions
Wheelbase:287.2mm (11.3″”)
Width:207.9mm (8.18″”)
Height:228.8mm (9.0″”)
Ground Clearance:61.3mm (2.41″”)
Final Drive Ratio:31.93:1

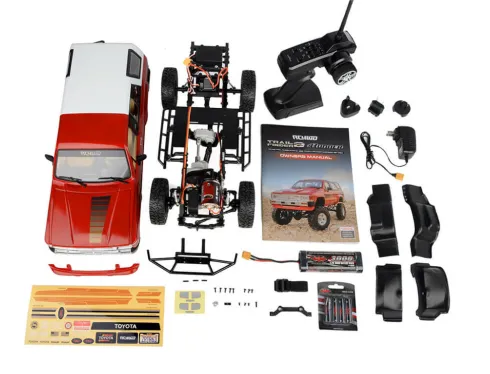

What’s Included

• 1 x RC4WD Trail Finder 2 RTR w/1985 Toyota 4Runner Hard Body Set (Red)

Notes

• While some components may come assembled, we always recommend that you check the products to ensure all hardware is tight. In some cases, you may want to apply thread lock to some of the hardware that is already installed.
• Use good quality hex drivers to avoid stripping screw heads.
• Use thread lock when putting metal screws into metal parts.
• Steps marked with an asterisk (*) require thread lock.
• Use thread lock sparingly.
• Do not over tighten screws otherwise you may strip the thread.
