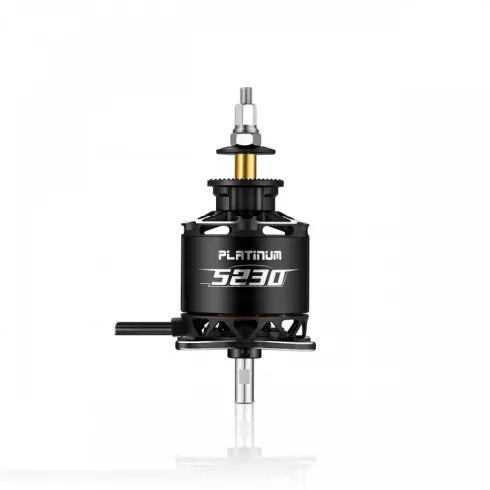

Hobbywing Platinum Motor 60×94 8mm 5230SL 220kV 10-12s Lipo (RC vliegtuigen)

Beschrijving

Hobbywing Platinum Motor 60×94 8mm 5230SL 220kV 10-12s Lipo (RC vliegtuigen)

Specifications

Motor Size:Φ60.2 *93.5mm
Stator Size:Φ51.7*t30
Stator Process:High standard silicon steel sheet,180? high temperature resistance paint-coa
Enamelled Wire:200?
Props Mounting Dimensions:Φ22mm-3*M4
Motor Mounting Dimensions:Φ30mm-4*M4;Φ44mm-4*M4
Slot & Pole:24N28P
Dynamic Balance:≤10mg
Bearing:1560ZZ,698ZZ
Motor Axle Diameter:Φ8mm
Isolation Test:500V AC high voltage resistance test
KV:220
Battery (LiPo):LiPo-10~12S
No-load Current:3.7A/44.4V
Maximum Current (Non-hermetic Ambient Temperature ≤ 25?:122.3A/45s
Max Power:5423W/45s
Max Thrust:14.34kg
Resistance:17.2mΩ
Wire Size:Enamelled Wire Output
Wire Length:100mm
Weight (With Wire):579g
Recommended ESC:PLATINUM 130A V4 PLATINUM 180A V5
Recommended Propeller:10S:20x10E,22x10E 12S:18x10E,19x10E,20x10E
