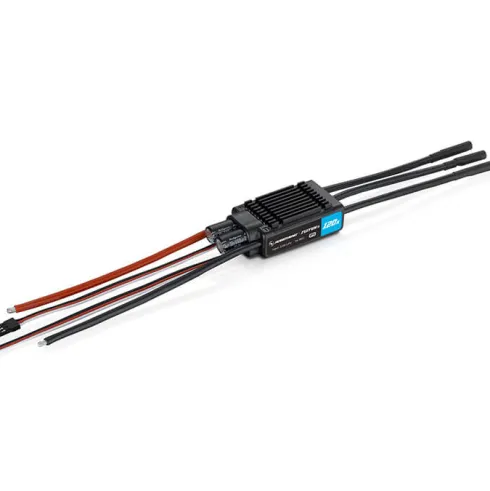

Hobbywing Flyfun 120A 3-8S V5 Speed Control

Beschrijving

Hobbywing Flyfun 120A 3-8S V5 Speed Control

Features

• ESC programmable through Transmitter and LED program card (purchase separately)
• DEO Technology / Active FreewheelingThe DEO technology (Driving Efficiency Optimization) implemented in the ESC has multiple advantages:- Rapider and smoother throttle response, better stability and flexibility during flight.- Higher driving efficiency, longer flight time.

  – Lower ESC temperature, more reliable operation.

• Soft Start-ups & Reverse Brake
• High-power BEC: High-power switch-mode BEC with continuous/peak current of 8A/20A and voltage adjustable among 5.2V, 6.0V &7.4V allows users to have more electronic devices or devices with higher power like servo, flight controller, and on-board light on their aircraft.
• Multiple Protections: Multiple protection features include start-up, over-current, ESC thermal, capacitor thermal, overload, throttle signal loss (or Fail Safe), and abnormal input voltage effectively prolongs the service life of the ESC.

Specifications

Cont./Peak Current:120A/150A
Input:3-8S LiPo
BEC:Switch Mode: 5.2V/6V/7.4V, 8A/20A
Input /output wire:12AWG-150mm
Input connector:NO
Output connector:4.0mm Gold Connectors (Female)
Size (mm):77.2×34.6×19.2
Weight (g):93
Reverse Brake Mode:Supported
