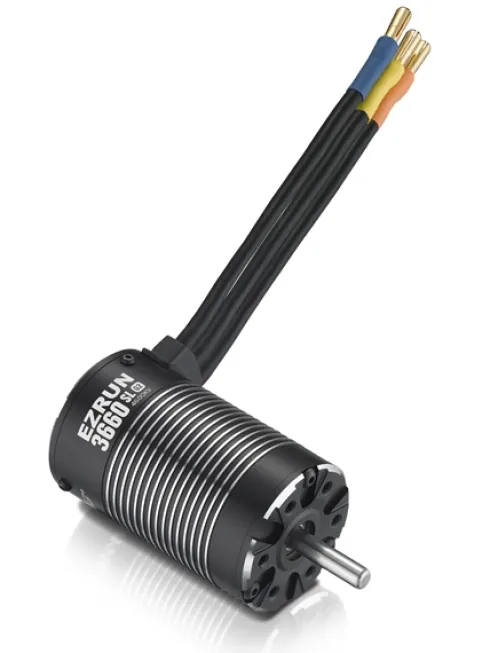

Hobbywing Ezrun 3660 G2 3200kv SL Motor 1/10

Beschrijving

Hobbywing Ezrun 3660 G2 3600kv SL Motor 1/10

The HobbyWing EzRun 3660 G2 motor features an Innovative 4-pole-8-magnet “staggered pole” rotor (Hobbywing-patented). It has low cogging effect and torque pulsation for improved control feel around corners. The built-in temperature sensor and sensor port protect the motor from damage due to overheating when pairing with an EzRun Max10/Max10 SCT ESC.

HobbyWing EzRun 3660 G2 3200KV SL Motor (1/10th Truck) Features:
Innovative 4-pole-8-magnet “staggered pole” rotor
Built-in temperature sensor and sensor port
O-ring seal fitted between the front end bell and motor case
Special design motor case (the end attaches to the front end bell) isolates inner coils from outside to protect winding from being damaged by overlong screws
Special technology for temperature control for less heat and more efficiency (efficiency rate of up to 90%)
CNC machined aluminium housing, high purity copper windings and advanced rotor structure
Rebuild-able design for easy routine maintenance

Spec Check:
Scale: 1/10th
Brushed/Brushless: Brushless
Sensored/Sensorless: Sensorless
Pole Count: 4
KV Rating: 3200
LiPo Cells: 2-3S
No-load Current(A): 4.9
Timing: 0 Degrees(Fixed)
O.D.(mm): 36.00
Length (mm): 60.00
Shaft Diameter (mm): 5.0
Weight (g): 262
