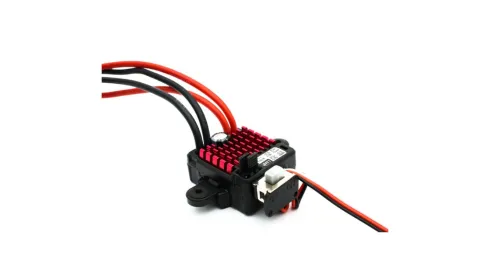

Dynamite Waterproof 60A brushed regelaar – DYNS2210

Beschrijving

Dynamite Waterproof 60A brushed regelaar – DYNS2210

This waterproof, brushed ESC is NiMH/LiPo compatible and offers forward/brake/reverse, forward/brake and crawler drive modes. Its compatibility makes it an ideal replacement ESC or the perfect upgrade to your current non-LiPo, non-waterproof, or limited motor spec ESC.

Features:
Waterproof for all weather operation *
LiPo and NiMH compatible
Program functions changed with the use of jumper pins
Up to an 8T motor limit
Removable mounting tabs create an even smaller footprint and allow hard mounting in a wide variety of vehicles
Crawler running mode
Pre-wired with EC3 battery connector and RTR compatible motor bullets for easy installation

Product Specifications:
Forward:Yes
Reverse:Yes
Brake:Yes
Time Delay Brake:Yes
Continuous Maximum Current:FWD: 60A REV: 30A
Input Voltage:2-3S Lipo, 5-9 cells NiMH/NiCd
Input Connector Types:EC3
Output Connector Types:3.5mm Tamiya style bullet
Motor Limit:2S Lipo/6cell NiMh >=8T 540/550 closed endbell motors, 3S Lipo/9cell NiMh >=13T 540/550 closed endbell motors
Momentary Peak Current:FWD: 360A REV: 180A
Length:1.48 in (37.5mm)
Width:1.46 in (37mm) without tabs, 2.23 in (56.6mm) with tabs
Height:0.71 in (18mm)
Weight:1.41 oz (40g)
BEC Voltage:5V
PWM Frequency:1KHz
Overload Protection:Yes
Full On Resistance:.0008 ohms
Wire Gauge:16AWG
Auto Cutoff:Yes
