Deans Marine – Trein Maersk – 1:100 (levering 10 werkdagen)

Beschrijving

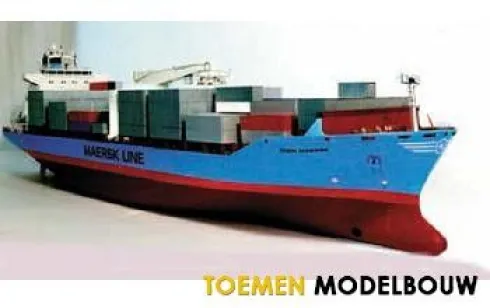

Zeer fraai model van een modern containerschip.

Gebaseerd op een fiberglas romp van ruim 160cm, compleet met uitgebreidt metalen beslagset

Een echte uitdaging voor de gevordere bouwer.

++++

The “T” class container feeder ships have been designed and constructed for the Maersk line in 1990 by the Tsoneishi shipbuilding co, Japan.

There are four ships in the class all sailing under the Maersk flag, the ships are named, m.s Trein Maersk, m.s. Tobias Maersk, m.s. Thorkil Maersk, and the m.s. Torben Maersk.

In 19951996 the Trein Maersk was renamed the T.R.S.L. Antares and was registered in Douglas I.O.M. as are many of the Maersk ships working from the U.K.

The deadweight tonnage of the ships is 21,229 mt on the principal dimensions of Length oa 161.02mt; Length bp 152.00mt; Beam oa 31.00mt; Depth mld 15.30mt. Full load draught ext 10..02mt on a Gross tonnage of 17.700 tons, The ships are constructed to the highest standards class LRS .x100A1 x LMC. UMS. container ship ocean going.

The vessels are used as a feeder ship and container vessel to country and ports where no container terminals are based, this accounts for the full size container crane with extended reach to enable the containers to be unloaded direct onto local transport or the dockside.

For this reason she is fitted with bow and stern thrusters for docking unaided in small ports, when tugs powerful enough to handle such a ship are often not available.

At the present time (1996) the Trein Maersk is operating from Hamburg, Felixstowe, to Mexico.

The ships are capable of carrying mixed sizes of standard containers and reefers for she has massive power plants capable of supplying power to 200 + reefers (freezer) containers and overseeing to the condition of the contents of same.

She is powered by a Burmiester and Wain 8S50MC diesel engine of 14,240 pc with a max r.p.m of 123 giving a max speed of 20.27 knots and a service speed of 18 knots. The ship carries a crew of 20 persons plus a Suez crew of 6 when required.

The keel of this ship was laid on 13th October 1989, and she was launched on 24th Jan 1990, she was delivered to her owners on the 15th May 1990.

Details of the kit

Scale 1/100 Length 1.6m Beam 318mm Sailing weight 18.2kgs

This model ship kit, we believe, to be the first of a modern container vessel. This kit is based on a 63″ x 12″ moulded glass fiber hull with all prop, rudder and fairlead detail moulded into the hull.

For the first time in our range of kits, and to allow for the size and weight of this model the deck and main hold tops included in the kit, are a one piece glass fiber moulding. Bonded to the 9mm square ramin deck beams this gives a hull deck combination of immense strength without the normal large number of bulkheads and multitude of deck beams associated with a model of this size and weight.

The 12 separate main container blocks are also in highly detailed glass fiber mouldings, some to serve as access hatches to the cavernous hull and to provide handy covers to the holds, A full set of 12 is included in the kit. Extra containers blocks can be added to provide an assorted mix of reefers and containers.

If you wish to carry a full load you can add up to 1,100 containers.? The main superstructure is in printed 1mm plastic as is the central container crane. A full set of detailed cast alloy fittings is included using some of the latest moulding technology to give detail to an outstanding degree. To compliment this large items such as the single free fall lifeboat and the massive main winches are finely detailed cast plastic fittings finished off with the fine detailed metal fittings.

Should the modeler wish to add variations to his boat, we have produced a new item in the Deans range.

This is a range silicone moulds of all the standard containers and reefers, plus an Acrylic moulding compound that when mixed with water sets like plaster to produce a set of kit mouldings that can then be assembled and painted by the modeler. The kits consist of 1 mould for a container kit, I packet of moulding acrylic, plus a set of instruction. Extra moulding acrylic is available as a separate item.

Two full size plans are included in the kit to aid construction plus a comprehensive instruction book using some of the latest digital imaging to provide picture and sketches to aid construction.

The Trein Maersk model is of massive proportions but still has outstanding sailing qualities as in all of the Deans fleet ,especially when fitted with the recommended motors and bow thruster, for those with and inventive mind the full size ship is also fitted with stern thrusters to make for some very interesting steering.
