Castle Creations MAMBA MONSTER X 8S 33.6V ESC 2028-800KV SENSORED MOTOR

Beschrijving

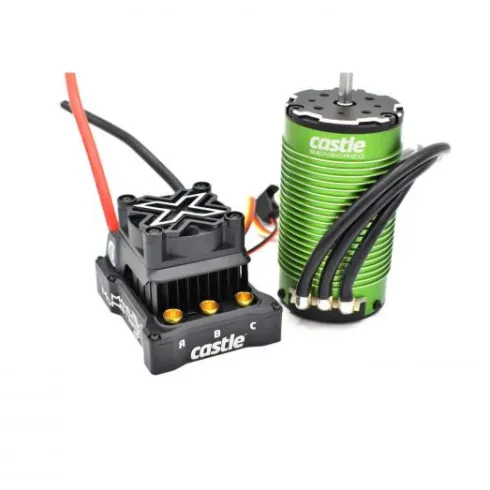

Castle Creations MAMBA MONSTER X 8S 33.6V ESC 2028-800KV SENSORED MOTOR

Pairing the sensor ready MAMBA MONSTER X 8S with the Castle 2028-800KV sensored motor enables users with heavy, high speed rigs to experience controllable low-end ranges, without sacrificing power, punch, or speed. SmartSense mode uses the motors sensors to start the motor to provide smooth cog free starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ultra-efficient sensorless mode. Electronic timing in SmartSense will advance timing automatically for peak performance during all driving conditions. This allows users to combine the best of both worlds in an unrivaled hybrid between smooth sensored startups and high-efficiency sensorless drive.

Application: Mamba Monster X 8S and 2028-800Kv motor is intended for use in 1:6 scale vehicles weighing up to 25 lbs. and up to 8S LiPo. Vehicle Examples: Traxxas™ X-Maxx & Unlimited Desert Racer; Arrma™ Kraton 8s & Limitless; Losi™ Super Rock Rey & Audi R8; Redcat™ Shredder (optional motor mount and modifications may be necessary to install motor).

MOTOR SPECIFICATIONS
Input Voltage Range: 3S-12S LiPo (8S MAX with this ESC/Motor Combo)
KV: 800
Max RPM: 45,000
Size: Length: 4.4” (112.7mm)
Diameter: 2.2” (56.3mm)
Weight (w/wires): 44 oz. / 1.25kg
Shaft Size: Length: 30mm, Diameter: 8mm
Mounting Hole Specifications: 4mm @ 30mm
Cooling Fan: Available, but not included. (Item 011-0019-00)
Connectors: 6.5mm male connectors

Application Guidelines:
Mamba Monster X 8S and 2028-800KV are designed for 1/6th scale vehicles weighing up to 25 lbs and up to 8S LiPo.

Tech Notes: This motor includes 10AWG wire and 6.5mm connectors for use specifically this ESC/Motor combo.

– New 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
– Proprietary stator winding enables low internal resistance for a cooler running motor
– Dual sensor ports to ensure optimal installation in your large-scale vehicle
– Oversized NMB bearings and vibration dampening system ensure the longest bearing life possible
– High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
