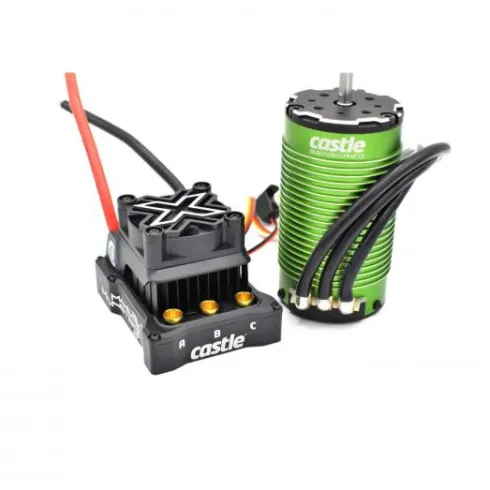

Castle Creations MAMBA MONSTER X 8S 33.6V ESC 1520-1650KV SENSORED MOTOR

Beschrijving

Castle Creations MAMBA MONSTER X 8S 33.6V ESC 1520-1650KV SENSORED MOTOR

The ALL NEW 1520-1650Kv and MAMBA MONSTER X 8S are the perfect upgrade for any for 1/8, 1/7 and 1/6 scale vehicles weighing up to 8.2 kg (18lbs) and up to 8s LiPo. The 1520-1650Kv has all of the secret sauce that the big brother 1717-1650Kv has, but in a more compact diameter, fitting into smaller spaces without required modifications to chassis

COMBO PURCHASE INCLUDES:
– Mamba Monster X 8S ESC
– 4-POLE Sensored 1520-1650Kv Motor
– Castle Sensor Harness Adapter
– 200mm Sensor Wire
– Mamba Decals
– ESC Quick Start Guide
– Motor Quick Start Guide

ESC FEATURES:
– Input Voltage Range 2S-8S LiPo
– Powerful Integrated 8A Peak Adjustable BEC (5.25V-8.0V)
– CRYO-DRIVE™ Technology minimizes the amount of time the ESC’s electrical components spend generating heat, resulting in improved thermal performance during partial throttle operation where the majority of driving occurs
– ESC is housed in a rugged CNC aluminum case and potted in waterproof epoxy to protect the electronics and promote efficient heat transfer
– Premium forged heatsink with elliptical fins for superior air flow and increased heat dissipation
– Oversized factory equipped thermally controlled 40MM cooling fan
– Compatible with S.BUS2 Telemetry Link and Futaba T4PX and T7PX transmitters
– Waterproof design for all weather conditions
– Data logging capability to capture and record performance data from your vehicle
– Auxiliary wire functionality for “on-the-fly” adjustments using your transmitter
– Audible alerts for easy diagnosis of common issues such as motor-over-temperature and low-voltage cutoff
– Convenient transmitter programming for six common adjustable settings including cutoff voltage and drag brake
– Easily tune and update ESC with USB and Bluetooth™ programming options

MOTOR FEATURES:
– 4-POLE 12-SLOT sensored design that boasts exceptional efficiency and produces less heat
– SMARTSENSE™ uses the motors sensors to start the motor to provide smooth starts, excellent torque, and low-speed drivability. Once the motor is turning, it seamlessly transitions to Castle’s ULTRA- EFFICIENT sensorless mode.
– Proprietary stator winding produces low internal resistance for a cooler running motor
– Oversized NMB bearings and vibration dampening system ensure the longest possible bearing life
– High-strength, high-temperature grade neodymium sintered magnets combined with high-strength Kevlar wrap ensures the integrity of the rotor is not compromised during harsh running conditions and high RPMs
