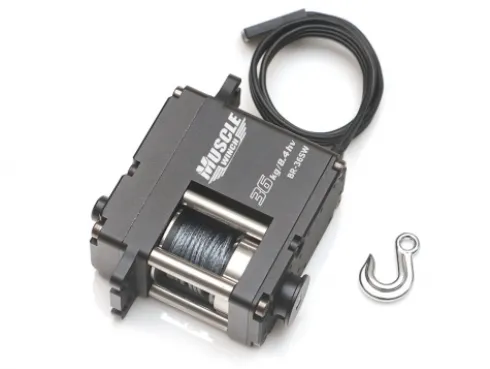

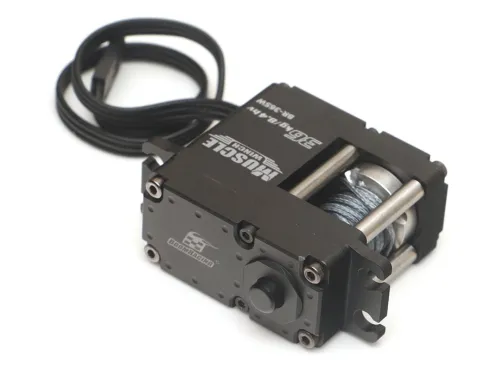

Boom Racing Muscle Winch™ High Torque 36KG Waterproof Servo Winch w/ Free Spool Unit

Beschrijving

Boom Racing Muscle Winch™ High Torque 36KG Waterproof Servo Winch w/ Free Spool Unit – BR-36SW

Boom Racing’s Muscle Winch™ is a dedicated and fully waterproofed internal servo winch designed and engineered from the ground up, delivering strong pulling power and reliable performance for any R/C builds.

Free Spool Unit

A dual-trigger free-spool unit is integrated into the Muscle Winch™ for quick winch release. There are two ways to trigger the free spool mechanism; one by pressing the button on top of the servo winch, and the other by pulling the knob on the bottom. This dual-trigger design makes the free-spool unit accessible from both sides of the servo winch, which is a major advantage when designing the layout of your servo winch placement.

To release the rope, press the button on top of the Muscle Winch™ or pull the knob from the bottom. This will disengage the locking mechanism allowing you to pull the rope out. Once you have reached the desired length, then release either the button or knob and continue pulling on the rope until you hear a “click” sound. The locking mechanism will re-engage and you are ready to winch.

The Muscle Winch can also be used without the free spool. You can use the radio to release the cable.

The Muscle Winch™ operates at 6V to 8.4V which produces up to 36KG of torque and features a billet aluminum case and full metal gears for strength and durability. A metal scale winch hook is included for the icing on the cake!

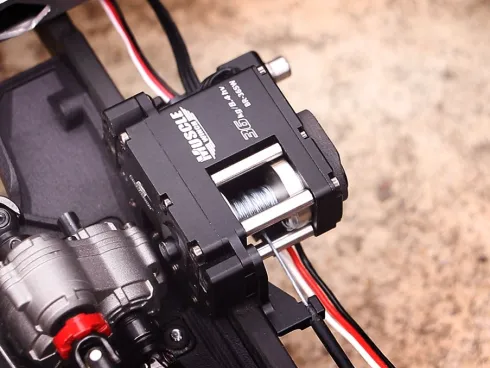

This servo winch is a direct plug-and-play product. It plugs straight into the receiver. All you need is a spare channel with a three-position switch to control the winch.

Specification:

• Integrated Free Spool Unit
• Operates at 6V-8.4V
• Torque: 36KG (500oz) @8.4V / 27KG (375oz) @6.0V
• Operating Speed: 95rpm @ 8.4V 72rpm @ 6.0V
• Fully Waterproof IP67
• Full metal case
• Full metal gears
• Metal hook included
• Nylon winch line 68kg (2 meters) included

Includes:

• Muscle Winch with Free Spool Unit
• Nylon winch line (2m)
• Metal Hook
• Decal sheet
• Instruction Manual
